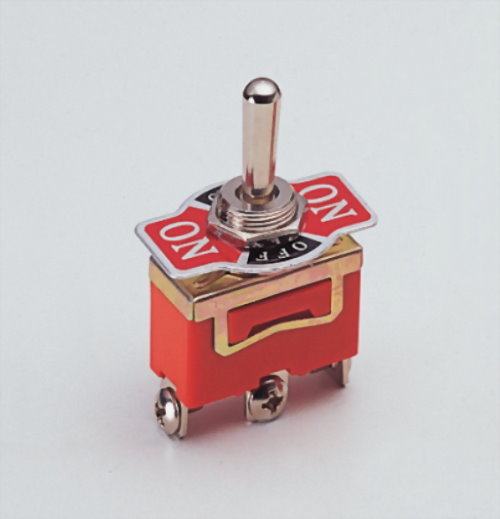

Schnappschalter 1122

3 Pole ON - OFF - ON
Rating: 15A 125VAC/10A 250VAC
Insulation Resistance: DC 500V 200MΩ Min.
Contact Resistance: DC2-4V 1A 20MΩ Max.
Withstand Voltage: AC 1500V Min.
Model : 1122

3 Pole ON - OFF - ON


Rating: 15A 125VAC/10A 250VAC


Insulation Resistance: DC 500V 200MΩ Min.


Contact Resistance: DC2-4V 1A 20MΩ Max.


Withstand Voltage: AC 1500V Min.
